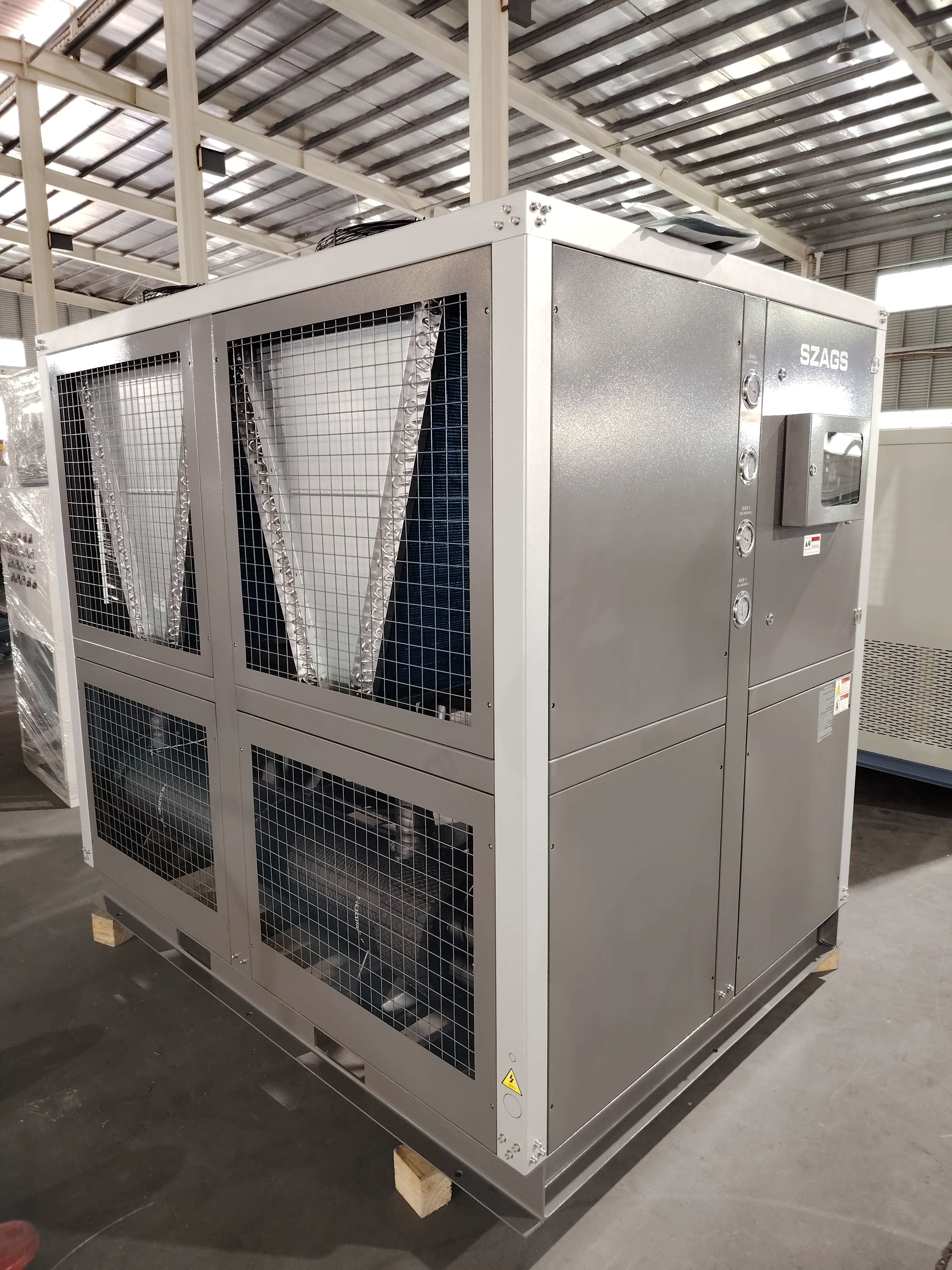

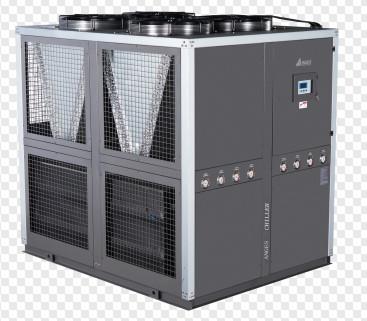

30TON AIR COOLED INDUSTRIAL WATER CHILLER FOR PLASTIC EXTRUSION LINE 92.4 KW COOLING CAPACITY

  • 1
  • 2
  • 3

Brand Name : ANGES

Model Number : ACK-30（D）

Certification : ISO9001, CE

Place of Origin : China

MOQ : 1

Price : Negotiation

Payment Terms : T/T, L/C

Supply Ability : 400 units/ month

Delivery Time : 10-35 days

Packaging Details : Plywood case

Type : Air Cooled Type

Capacity : 30HP

Compressor typetype : Danfoss/Panosonic/Copeland/LG

Refrigerant : R410a/R407C/R134A/R22

Pump : Included 2 bar- 4 bar

Water tank : 220L

Voltage : 3PH~220V/380/415V~50HZ/60HZ

Dimension(l*w*h) : 2000*1480*1950

Weight : 1300kg

Temperature range : 5℃ ~ 35℃

Application : Industrial Cooling Solutions,Plastic & rubber / Chemical etc / Welding

Contact Now

30ton Industrial Water Chiller Units For Plastic Extrusion Line 92.4Kw

The working principle of using a chiller with an extruder involves rapidly cooling the extruded plastic material after it has been heated, ensuring quick solidification and maintaining its shape. This cooling system, often utilizing a chiller or a cooling circulation system, can directly or indirectly contact the extruded product to regulate temperature and speed by adjusting the flow rate and temperature of the cooling medium.

Specification

Item

Model

 ACK-30(D)
Nominal cooling capacity Kcal/h 76024
kw 92.4
Input power kw 30.76
Power supply 3PH 380V 50HZ
Refrigerant Type R22
Type of control Expansion valve
Compressor Type Hermetic scroll
Power(kw) 24.92
Condenser Type Finned copper tube + low noise outer rotor fan
Power(kw) 1.84
Cooling air flow(m3/h) 30000
Evaporator Type Shell and tube
Chilled fluid flow(m3/h) 15.93
Volume(L) 220
Inlet/outlet pipe caliber(inch) 2-1/2
Pump Power(kw) 2.2
Flow (m3/h) 2.2
Lift(m) 20
safety protection compressor over temperature protection, over load protection, high and low pressure protection, flow switch protection, reversed and lacking phase protection, anti-freezing protection,fusible protection.
Weight kg 1300
Dimension mm 2000*1480*1950

Why choose a chiller to cool the injection molding machine

  1. A mold is a heat exchanger. The heat is transferred from the molten plastic to the mold, and then from the mold to the continuously circulating cooling medium - ice water. Only a small part enters the air and the die plate of the injection molding machine.
  2. As we all know, a considerable part of the plastic molding cycle is used for cooling, sometimes accounting for more than 80% of the plastic molding cycle. Therefore, it is absolutely necessary to control the cooling time to a minimum.
  3. For example, the molding cycle of a mold is generally 20 seconds. If the water in the original cooling tower is replaced with ice water produced by the chiller for cooling, it can be shortened to 16 seconds.
  4. Although the initial cost of choosing to equip a chiller is higher, it can increase production by 20%, and in long-term production, it can achieve great benefits.

THE AFTER-SALE SERVICE OF ANGES CHILLER!

  1. After finish the production, we will debug the production line, take photos, videos and send them to customers via mail or instant tools
  2. After the commissioning, we will package the equipment by standard export package for shipment.
  3. Engineers, sales managers and after-sales service manager will form a after-sales team, online and off line, to follow the customers' project.

FAQ

1.How does a chiller system work?

Chiller has two circulation,one is process water circulation,the other is refrigerant gas circulation.Heat picked up from the process.Heat transfers to refrigerant circulation.Heat is remove to air or water.

2.How to calculate cooling capacity for chillers?

Cooling Capacity(kw)= Flow Rate(m3/h)*Temp Change(T1-t2)/0.86

Heat Load= C(specific heat)* M(quality output per hour )*Temp Change(T1-T2)

3.How can we do for chiller maintenance ?

Step 1: Keep Tubes Clean
Step 2: Ensure a Leak-free Unit
Step 3: Sustain Proper Water Treatment(prevent scale, corrosion)
Step 4: Analyze Oil and Refrigerant
