Shenzhen Anges Machinery Co., Ltd
Technical Parameter of Water-Cooled Screw Type Chiller
|
Model
Item
|
AGS-280WDH |
| Nominal cooling capacity |
kcal/h |
915040 |
| kw |
1064 |
| Input power |
kw |
212 |
| Max running current |
A |
482.3 |
| Power supply |
3PH-380V-50HZ |
| Refrigerant |
Type |
R22 |
| Type of control |
expansion valve |
| Compressor |
Type |
semi-hermetic screw |
| Power(kw) |
105.8×2 |
| Start-up mode |
Y-△ |
| Capacity control |
0-25-50-75-100 |
| Evaporator |
Type |
shell and tube |
| Chilled fluid flow (m3/h) |
183 |
| Pipe diameter (inch) |
6 |
| Condenser |
Type |
shell and tube |
| Cooling water flow (m3/h) |
219 |
| Pipe diameter (inch) |
5×2 |
| Safety protection |
compressor over temperature protection, over load protection, high and low pressure protection, flow switch protection, reversed and lacking phase protection, anti-freezing protection,fusible protection. |
| Dimension |
mm |
4250*1320*2150 |
| Net weight |
kg |
4230 |
| Running weight |
kg |
4560 |
Note: 1.Nominal cooling capacity is according to:
Inlet chilled fluid temperature: 17℃; Outlet chilled fluid temperature: 12℃
Inlet cooling water temperature: 30℃; Outlet cooling water temperature: 35℃
2. Working Range:
The temperature range of chilled fluid is from 5℃ to 35℃;
Temperature difference between inlet and outlet chilled fluid is from 3℃ to 8℃.
The temperature range of cooling water is from 18℃ to 37℃;
Temperature difference between inlet and outlet cooling water is from 3.5℃ to 10℃.
We reserve the right to modify the above dimensions or parameters without further notice.
Shenzhen Anges Machinery Co., Ltd
Configuration table for Water-cooled Screw Type Chiller
| Item |
Main Parts |
Brand |
Remark |
| 1 |
Semi-hermetic Compressor |
Hanbell |
China |
| 2 |
Expansion Valve |
Emerson |
USA |
| 3 |
Condenser |
Anges |
China |
| 4 |
Evaporator |
Anges |
China |
| 6 |
Solenoid Valve |
Emerson |
USA |
| 7 |
Drying Filter |
Emerson |
USA |
| 8 |
Oil Pressure Gauge (High&Low) |
Refco |
Switzerland |
| 9 |
Touch Screen |
Weintek |
China |
| 10 |
PLC Controller |
Siemens |
Germany |
| 11 |
Electrical components |
Schneider |
France |
Product Tags:
|
|

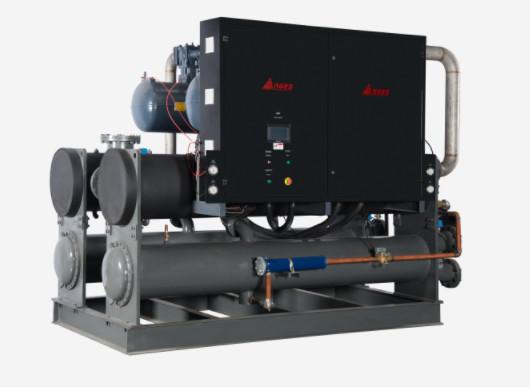

280HP Water Cooled Screw Chiller Industrial Process Water Chillers For Printing And BOPP Film Lamination Line Images
|
